Description

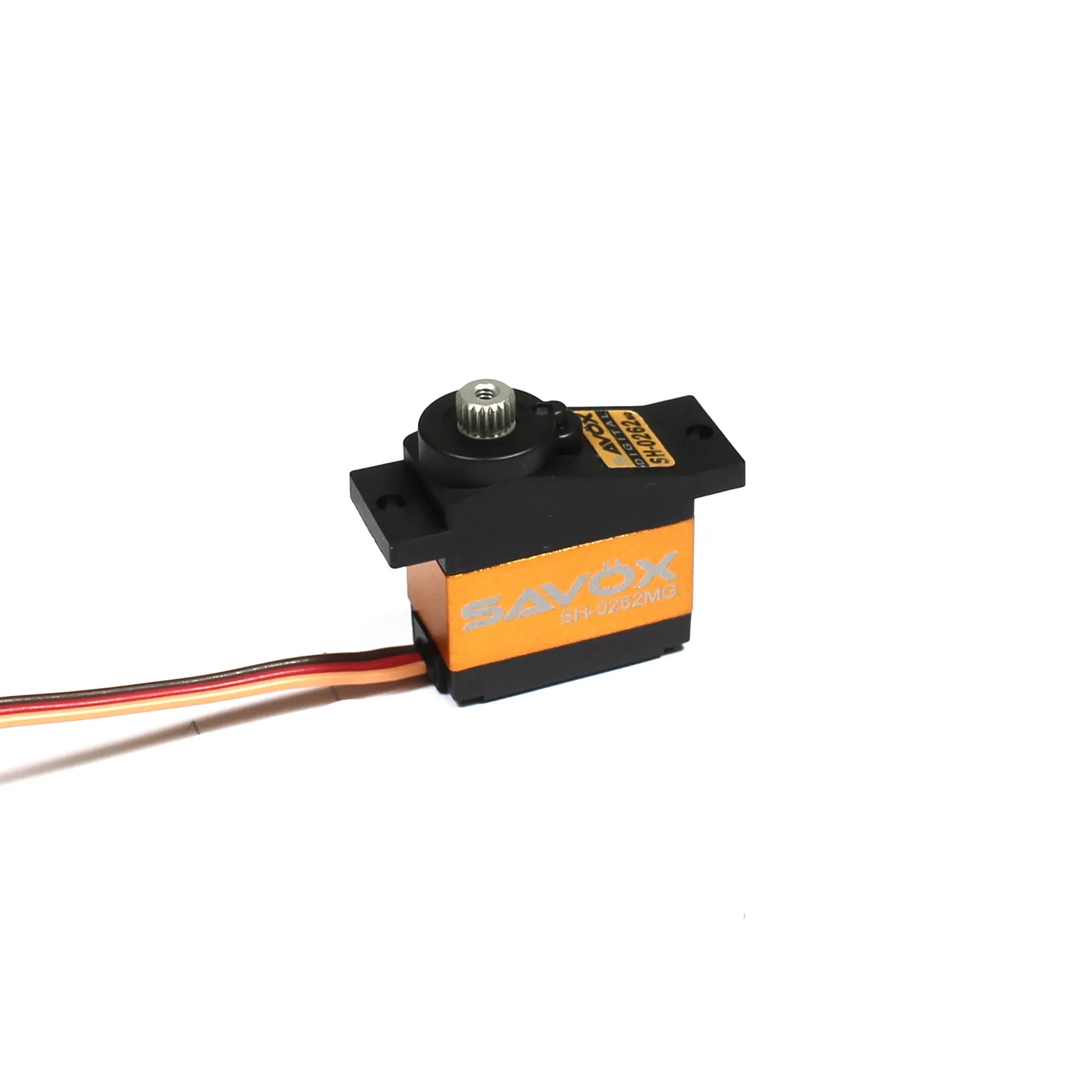

The Savox SH-0262MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.
Features:
Metal gear train ensures durability and longevity.
Aluminum middle case allows for cooler operating temperatures.
Ideal for small planes, and 450 size helicopters.
Extremely fast speed for immediate response.
Specifications:
Torque @4.8v - 0.8kg/11.1oz-in
Torque @6v - 1.2kg/16.7oz-in
Speed @4.8v - 0.08 sec/60 deg
Speed @6v - 0.06 sec/60 deg
Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
Weight: 13.6g
Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 60mA @4.8V, 80mA @6.0V
Stall Current (at locked): 480mA @4.8V, 600mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 21 Tooth
Bearings: 1BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 700 → 2300 µ second
Maximum Travel: Appx 150° (700 → 2300 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
